Quick Details

  • Type: Steel Frame & Purlin Machine, Automatic Metal Stud and Track Roll Forming Machine
  • Condition: New
  • Work Pressure: 195 Mpa---350 Mpa
  • Production Capacity: 40m/min
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: XF
  • Model Number: XF35
  • Voltage: 380v 50hz 3phase
  • Power(W): 5.5+3kw
  • Dimension(L*W*H): 5.8*1.55*1.51m
  • Weight: approx 2.5 ton
  • Certification: ISO9001:2008
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Width of the plate: 90mm
  • Productivity: 40m/min
  • Color: Blue
  • structure frame: 300mm
  • Product name: Purlin roll forming machine

Packaging & Delivery

Packaging Details: Light Steel Villa House Frame Roll Forming Machine needs one 40 feet container to hold.
Main machine is naked and control box is packed by carton box frame.
Delivery Detail: Shipped in 30 days after payment
Product Description

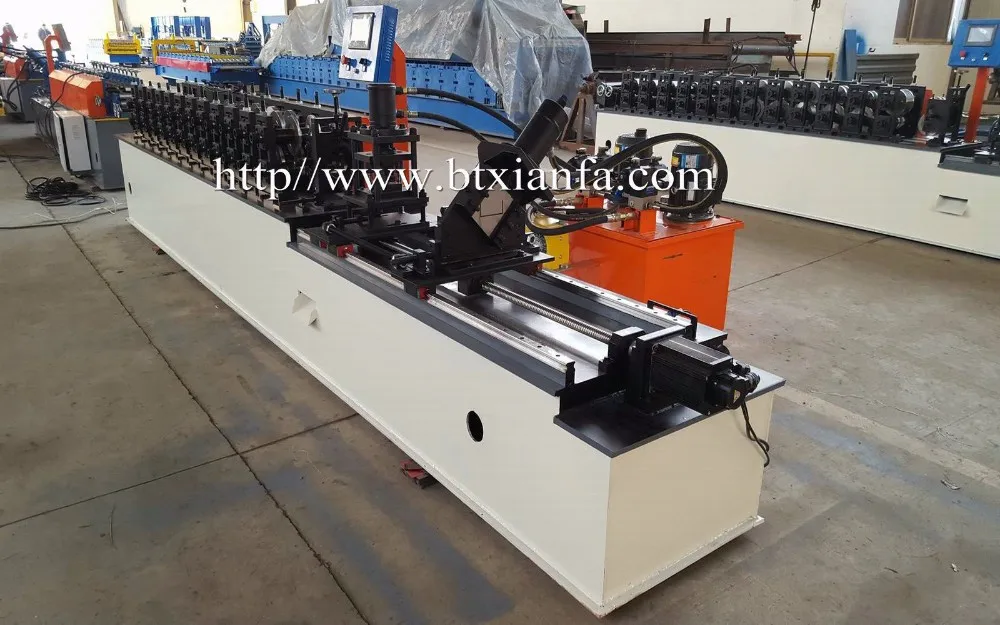

Automatic Metal Stud and Track Roll Forming Machine


Product Application

The Automatic Metal Stud and Track Roll Forming Machine is special for small size of U purlin, C purlin and so on. The purlin is widely used as the storage rack in the supermaket, the ceiling frame and the door and window frame. The stud machine use non-stop cutting system, so the speed can touch 50m/min. And two different model design can be made in one machine. That kind of design would save the cost of machine, and the space of warehouse. It has the advantage of light weight, neat appearance.

Detailed Image
Suitable Material
PPGI GI AL
Thickness Range
0.3-0.8mm
Coil Width
500 or customized
Profile Size
customized
Machine Components

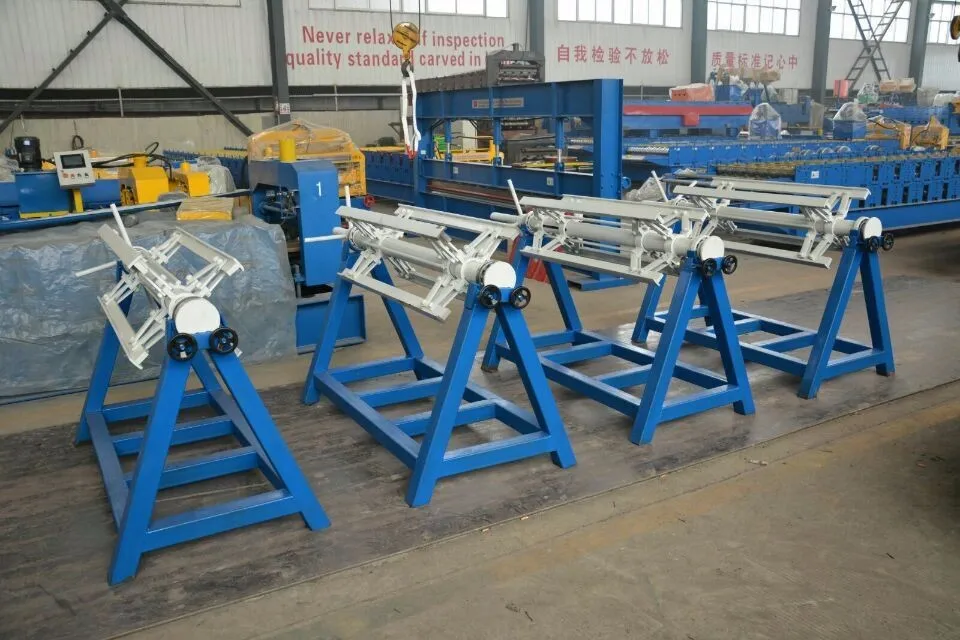

1.5T Manual decoiler

Dimensions:  1700*1000*800

Width: 500

Inner Diameter: 450-508mm

Capacity: 1.5T

Quality: 1 set


We also have Hydraulic type for 5T to 10 T .

Feeding Device

Width: 1250 mm Adjustable

It helps to keep products neat, parallel and everything is uniformity. Please refer to the equipment instruction to know the function of locate angle iron.

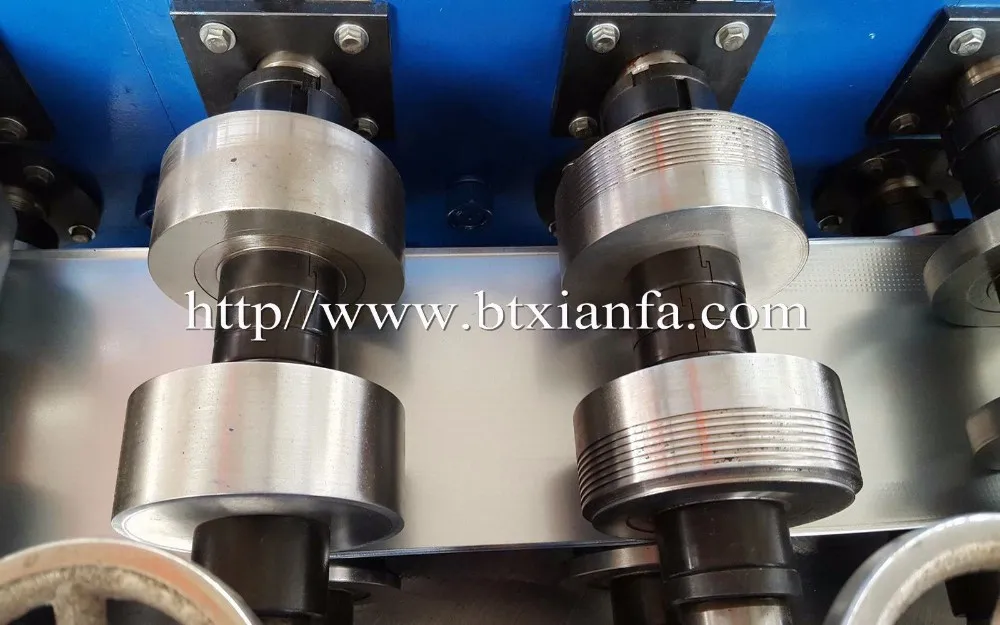

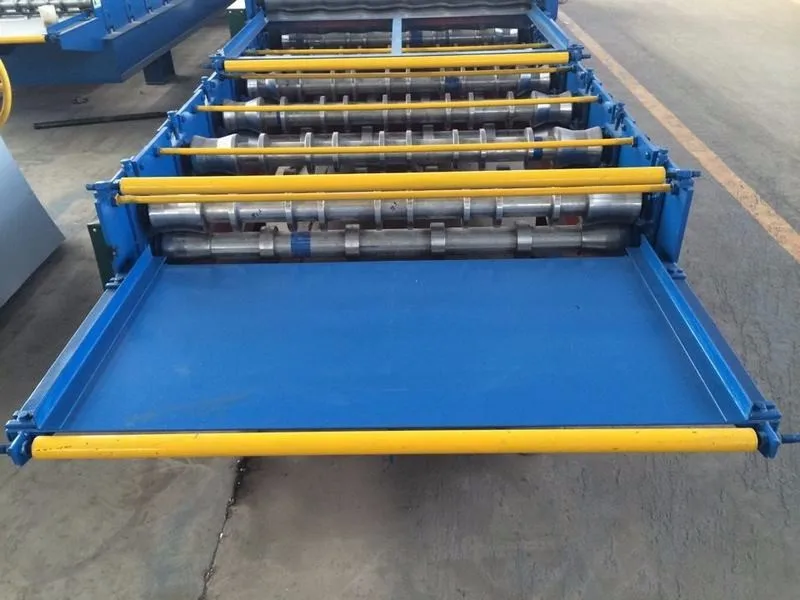

Roll Former

Roller Station: 12 rows
Roller Material: No.45 steel, roller surface polishing , with heat treatment
Shaft diameter :70mm
Motor Power: 4KW

Capacity:40m/min

Voltage: 380V 50Hz 3Phase , or customized

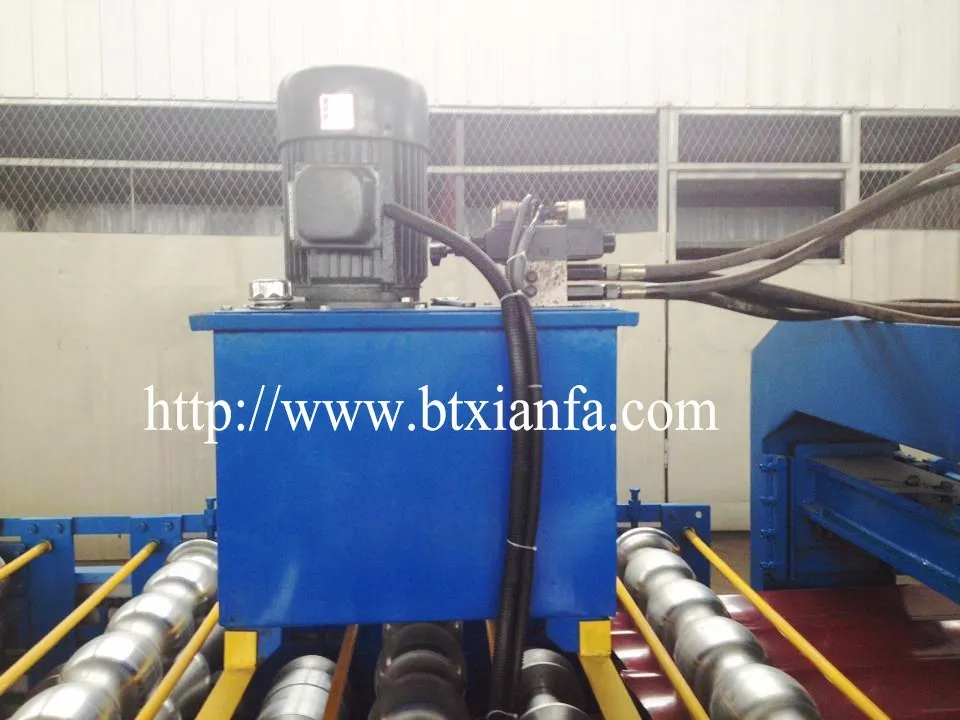

Hydraulic Pump Station

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

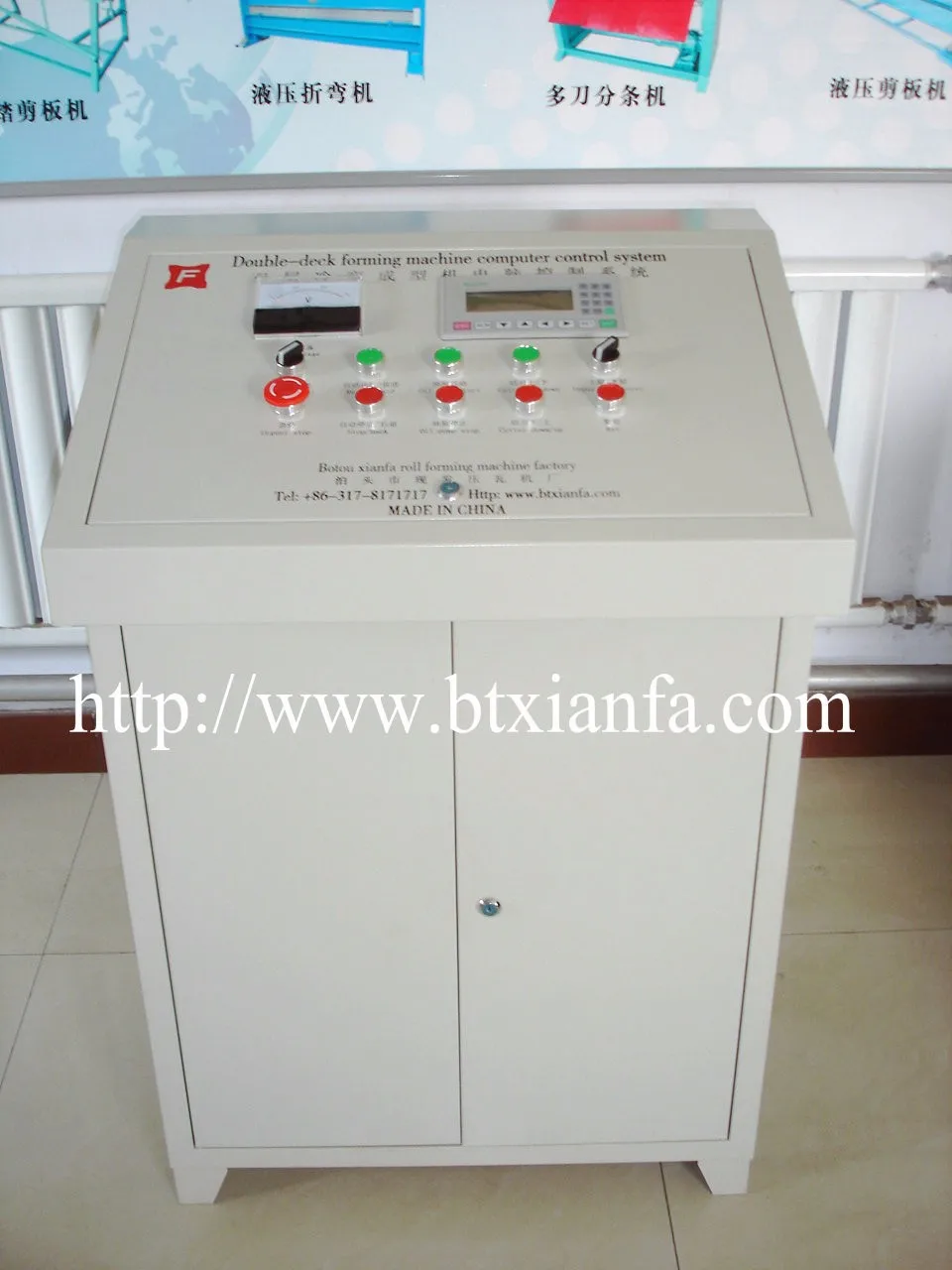

PLC control system

PLC Brand : EURA or Customized

Language: English and Chinese

Control panel: Button or Touch Sreen

Frequency converter : EURA or customized

HMI : Easy to operate

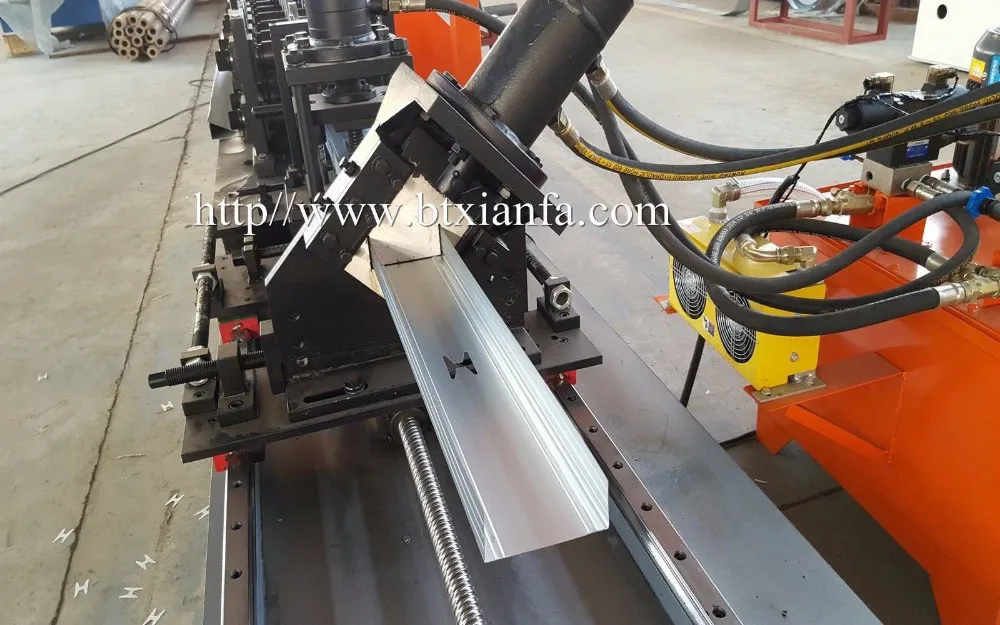

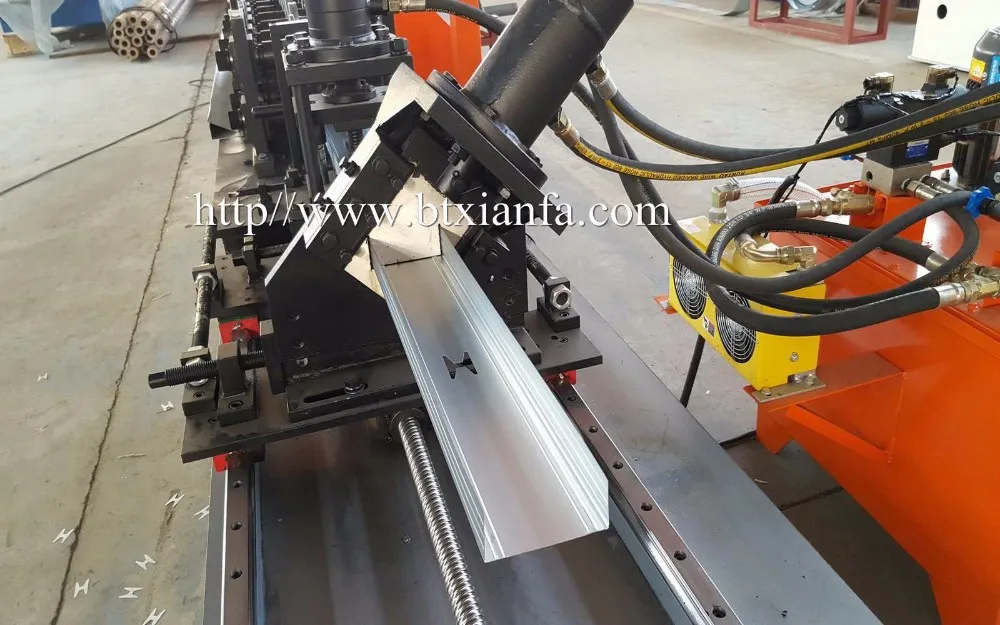

Hydraulic Cutting

Forming and Cutting: Cut the sheet after roll forming to required length

Material of blade: Cr12, 58-62 HRC hardness

Hydraulic power : 4KW
Length measuring : Automatic encoder length measuring

Tolerance of length : +/- 1.5mm for each piece

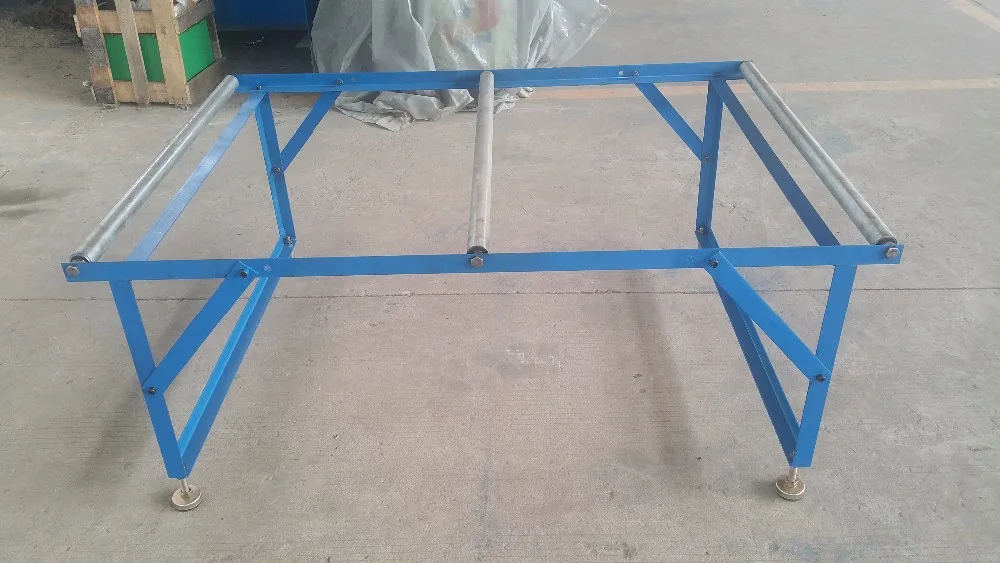

Out Put Table

Size: 1500*1300*700mm

Quantity: 2 sets


We also have Auto stacker for automatic production line .

Packing & Delivery
Packaging
Size
5800 (L) * 1550 (W) * 1510 (H)
Weight
2.5T

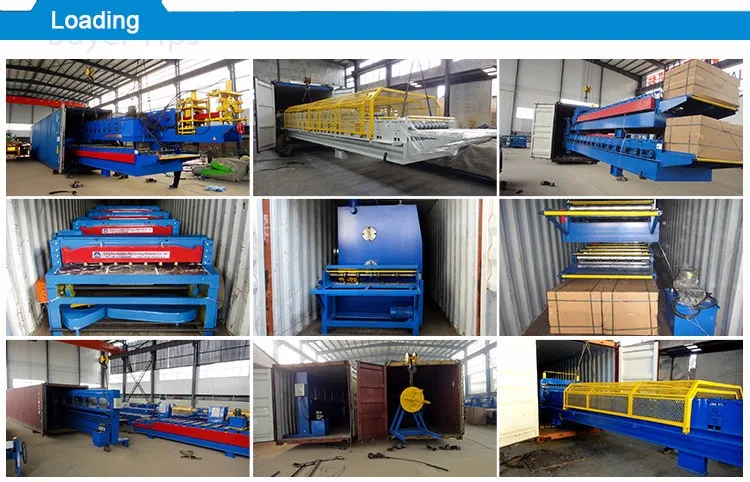

Packaging Details
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.
Certifications

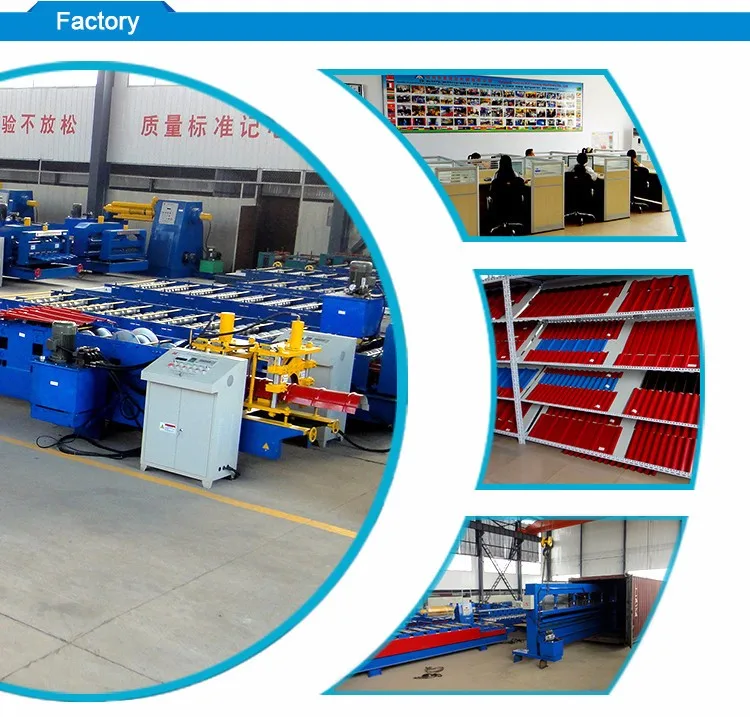

Our Company

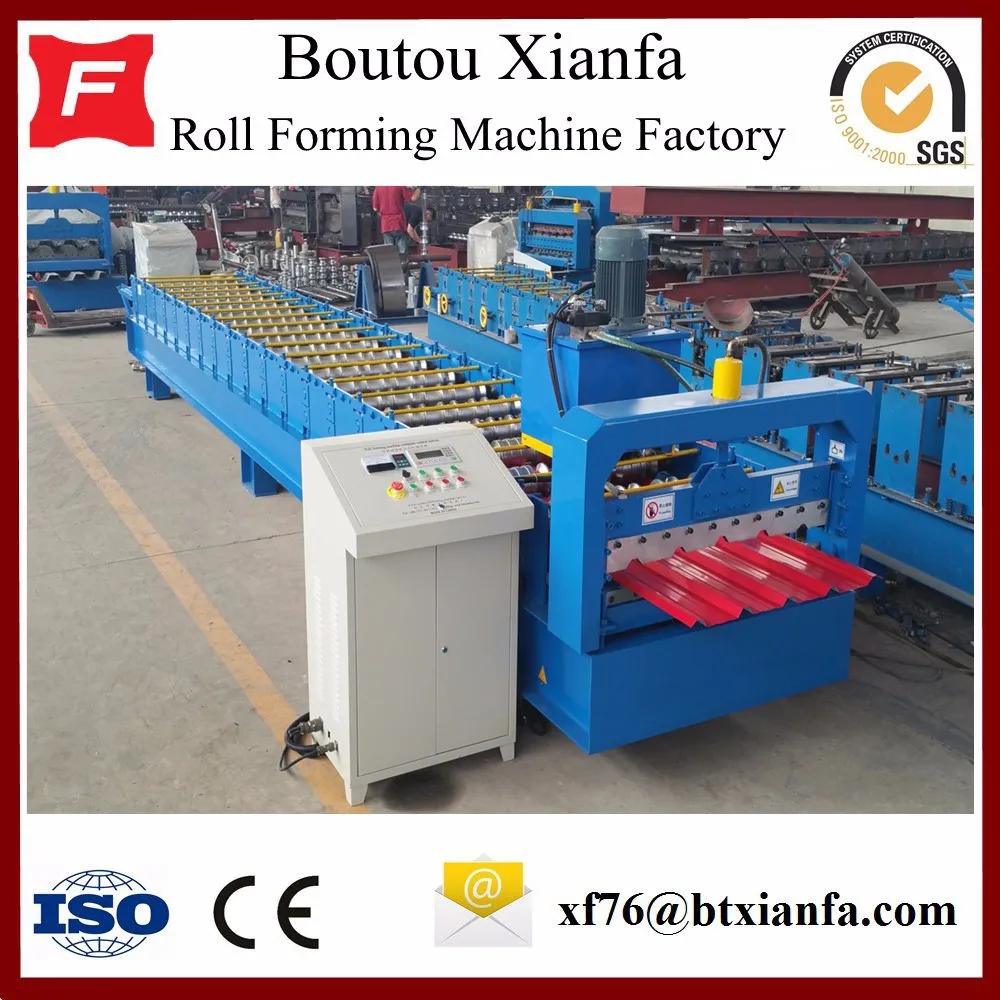

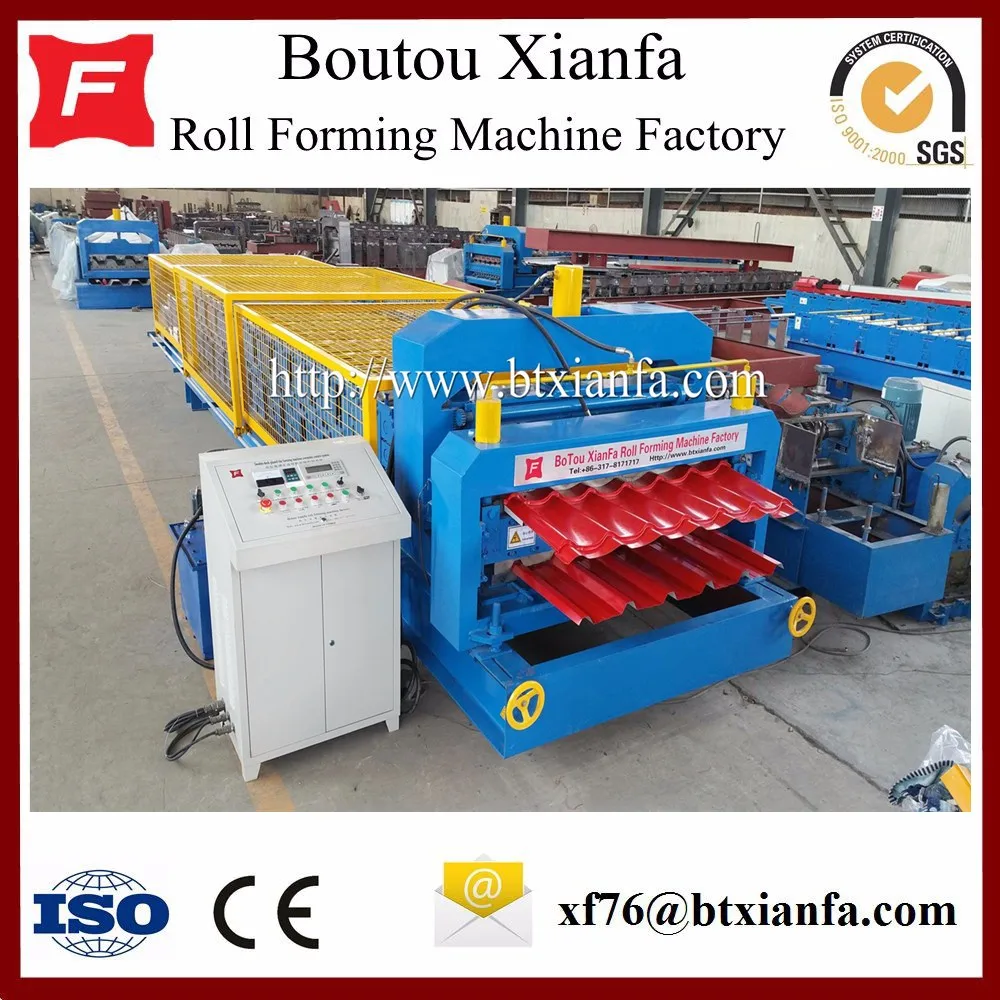

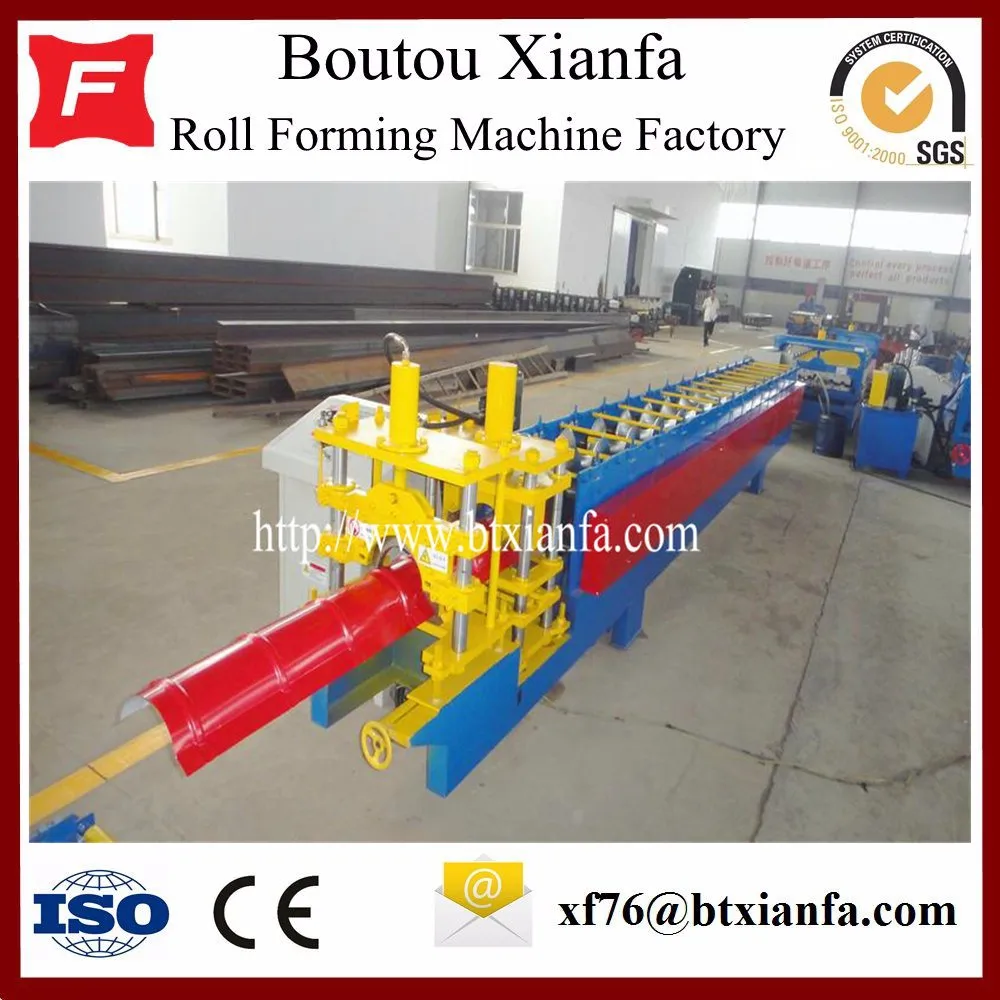

Related Products
